Maximum processing cable diameter
|
3. 5mm
|
Minimum machining diameter
|
0. 64mm
|
|
Maximum processing length
|
4999mm
|
Minimum processing length
|
Total length 25mm
|
|
Cutting depth unit
|
0.01mm
|
Maximum peeling length A end (left end)
|
0-90mm
|
|
Maximum peeling length A end (left end)
|
0-90mm
|
Maximum peeling length B end (right end)
|
0-90mm
|
Maximum number of peeling layers
|
3 levels
|
Wire stripping speed and cutting speed
|
Adjust according to demand
|
Production efficiency (stripping at both ends with a line length of 100mm)
|
About 1200pcs/H
|
Drive mode
|
Domestic stepper/ball screw
|
Display mode
|
7-inch LCD touch screen with Chinese and English interface
|
Rotating cutter
|
2 pieces, imported tungsten steel
|
Cutting and peeling blade
|
2 pieces, imported high-speed steel
|
Wire clamping device
|
Automatic centering, motor-driven, clamping force program control
|
Data storage capacity
|
50 groups
|
Power requirements
|
AC220V/AC110V
|
Energy consumption power
|
Less than 3000W
|
Machine weight
|
About 130KG
|
External dimensions
|
720x660x450mm
|
Motor type
|
Domestic closed-loop stepper motor
|

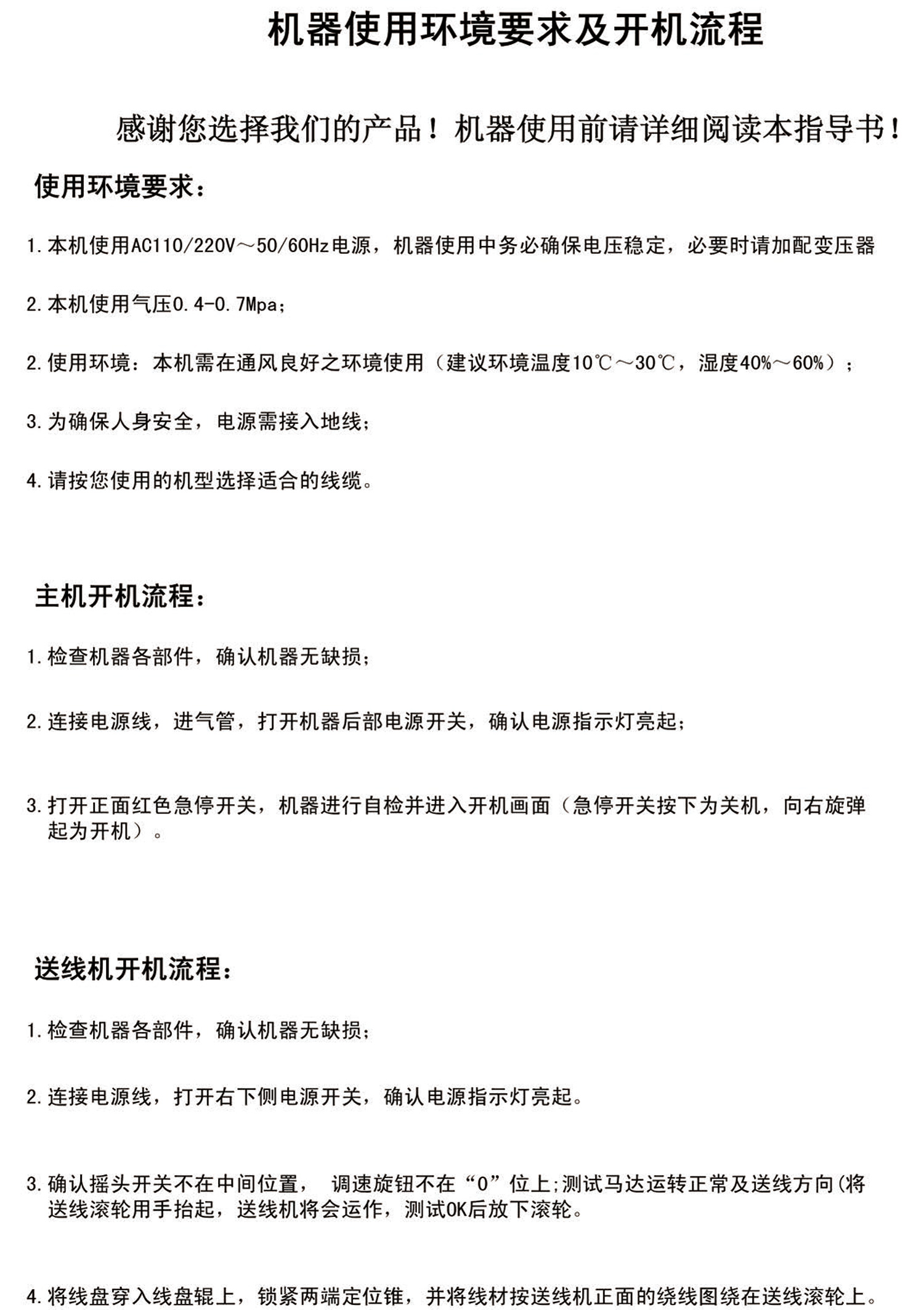

Work environment requirements
|
Ventilation and dry environment, temperature range from 0 ° C to 35 ° C
|
|
|
