Capacity: 1600 pieces/hour (within 300mm length)

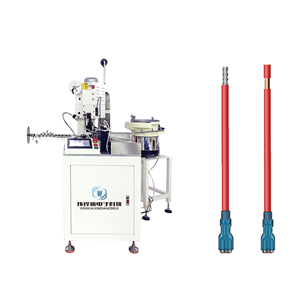

Function: Fully automatic wire cutting, peeling, crimping of terminals, double end sheath pulling in place

Processing range: AWG24 # - AWG14#

Outer diameter of wire: 1.6mm-3.6mm

Cutting length: 80-3000mm

Power supply: AC220V 50/60Hz 20A

Cutting accuracy: When the length is less than 500mm, set the length to 0.5mm * 0.2%;When the length is greater than 1000mm, set the length to 1mm * 0.2%;

Pressing ability: standard 2TON (casting ultra quiet clutch 2.0T terminal machine)

Mechanical dimensions: L965 * W835 * H1860 (mm)
